With a wide selection of standardized exchangeable load carriers, high quality standards and availability at all times, we ensure the supply of your production and distribution. Our load carriers meet the required quality criteria, standards and legal regulations.

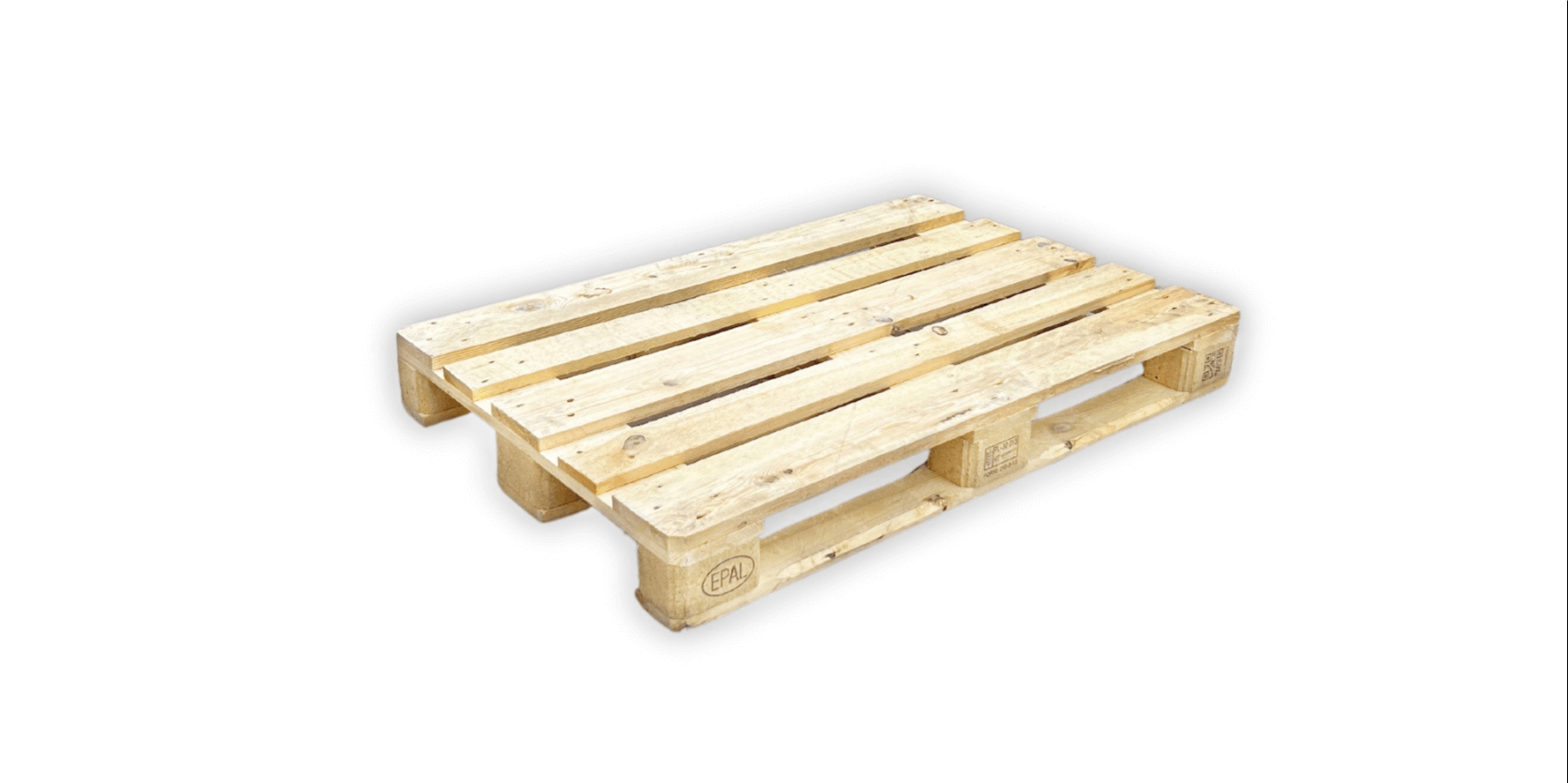

EUR-pallet
Since the 1960s, the EUR-pallet has developed into one of the most important exchange load carriers due to its versatility. It is used by many sectors: Consumer goods, transportation logistics or industry.
Details
| PROPERTY | DATA |
|---|---|
| Dimension W x L mm | 800 x 1200 mm |
| Height | 144 mm |
| Load capacity | up to 2,000 kg |
| Production according to | UIC standard 435-2; integrated in DIN 15146-2 |
EPAL7-half-pallet
The EPAL7-half-pallet was introduced by the European Pallet Association (EPAL) in 2019. It offers an efficient solution for the transportation and storage of goods. Due to its design, it is appreciated in various industries.
Details
| PROPERTY | DATA |
|---|---|
| Dimension W x L mm | 600 x 800 mm |
| Height | 163 mm |
| Load capacity | up to 500kg |
| Production according to | EN 13698-2 |

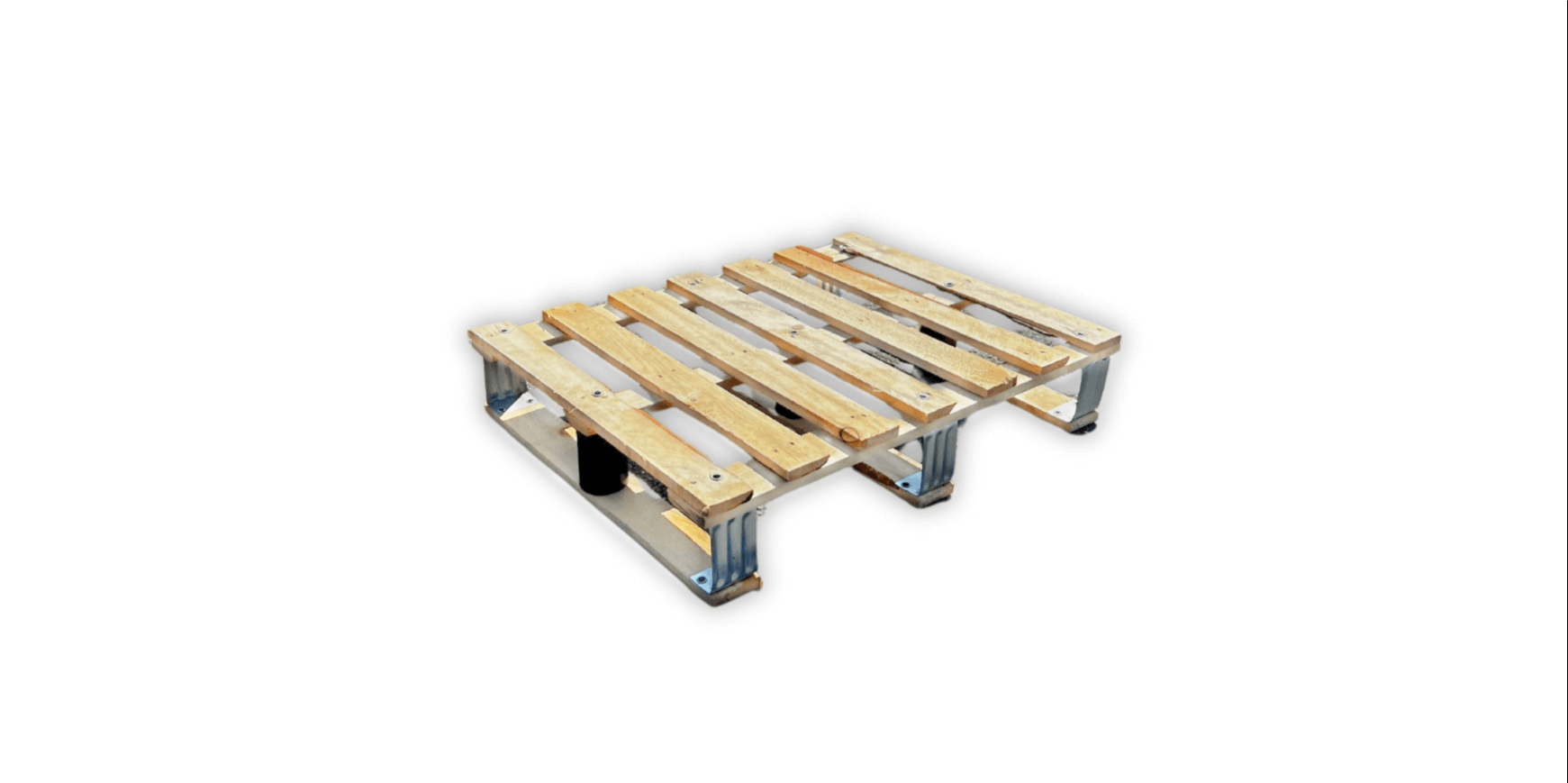

Düsseldorf-half-pallet
The Düsseldorfer-half-pallet was developed in the 1980s in cooperation between retailers and manufacturers. It is particularly interesting for use at the point of sale due to its small dimensions.
Details
| PROPERTY | DATA |
|---|---|
| Dimension W x L mm | 600 x 800 mm |
| Height | 164 mm |
| Load capacity | up to 1,000 kg |
| Building standard | DIN15146 / Sheet 4 and ÖNORM A5303 |
DPL-plastic-half-pallet
The DPL-plastic-half-pallet is made of polyethylene (PE) and six steel profiles. It can be driven under on four sides, is easy to stack, has a high load-bearing capacity and is ideal for areas with special hygiene requirements.
Details
| PROPERTY | DATA |
|---|---|
| Dimension W x L mm | 600 x 800 mm |
| Height | 165 mm |

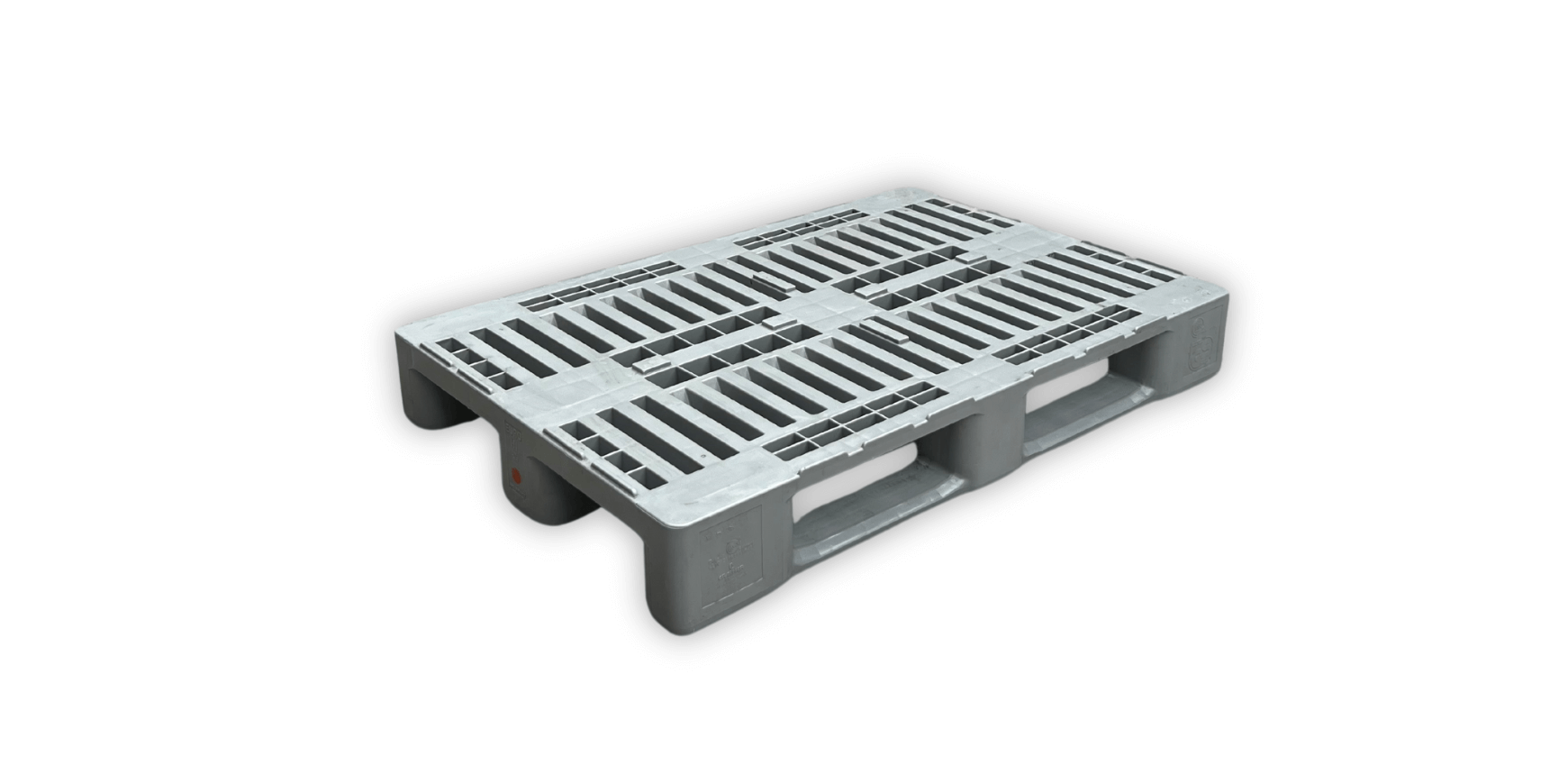

H1-hygiene-pallet
Since the 1990s, the H1-hygiene-pallet range has established itself as the standard in the meat industry. It is also increasingly being used in other areas, particularly by raw material suppliers and food producers.
Details
| PROPERTY | DATA |
|---|---|
| Dimension W x L mm | 800 x 1200 mm |
| Height | 160 mm |
| Load capacity | Dynamic up to 1,250 kg |
| Load capacity | Static up to 5,000 kg |
EURO-grid boxes
The EURO-grid box is a tried and tested load carrier in industrial production, especially in the automotive industry. It is characterized by high stability and flexibility when storing a wide variety of products.
Details
| PROPERTY | DATA |
|---|---|
| Dimension W x L mm | 835 x 1240 mm |
| Total height | 970 mm |
| Usable height | 800 mm |
| Payload | 1000 kg |
| Stability | 4 times |
| Load capacity | max. 1500 kg |
| Utilization | max 6.000 kg |
| Production according to | UIC standard 435-3; integrated in DIN 15155 |
